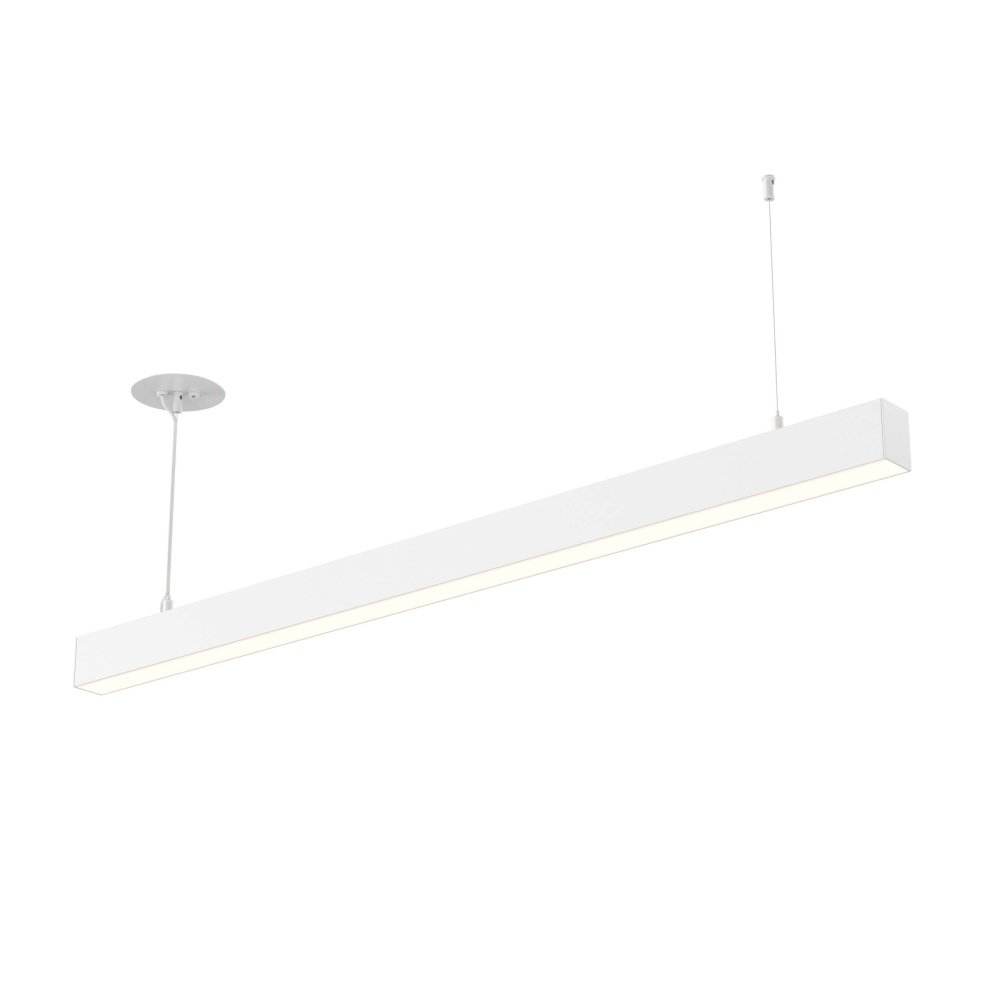

Pendant linear 48in 5CCT 0-10V dimming (120-277-347V) (6Y9JH)
The Boulevard series, a linear modular light fixture perfect for general office, home, and shop illumination. Can be interconnected to produce striking visual effects.
Product Specification
Item #
6Y9JH
Dimensions
Height: 2.50"
Width: 1.88"
Length: 47.13"
Additional product details
Internal #
6Y9JH
Finish
White
Option
Energy Star , Title 24 , Dry Rated
Category
Ceiling
Subcategory
Pendant
Finish
White
Family
Boulevard
Voltage
120 V/277 V/347 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.11.0091
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4.5
Ship Carton Length
48.75
Ship Carton Width
5.5
Ship Weight
3
Warranty
5 Years Limited
Weight
2.5
Beam Angle
106°
Bulb CRI
90
Cord Maximum Length
120
Country of Origin
China
Delivered Lumens
2805
Dimmer Type
0-10V
Energy Star
Yes
Indoor
Yes
IP Rating
IP20
JA8
Yes
Lens Material
PC
Location Rating
Dry Rated
Max Wattage
40 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
10
Shipping Master Length
49.5
Shipping Master Quantity
1
Shipping Master Weight
17
Shipping Master Width
11.5
Title 24
Yes
Wiring
Hardwired


Other Details:
  • Dimming ranges from 10% to 100%
  • Multiple fixtures can be connected together
  • Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
  • Unique 20% up/ 80% down light output
